SAE 100R14 hydraulic hose, also known as PTFE (Polytetrafluoroethylene) hose or Teflon hose, is a smoothbore PTFE lined hose. It is made to meet or exceed the SAE 100R14 specification. It could deliver petroleum fluid and water-based hydraulic fluids in the working temperature range of -40°C to +260°C. SAE 100R14 Hose is commonly used in the chemical, pharmaceutical, food processing, and automotive industries. It is designed to handle high temperatures, corrosive fluids, and applications that require a non-stick surface. compare to another hose, it also have the longest life.

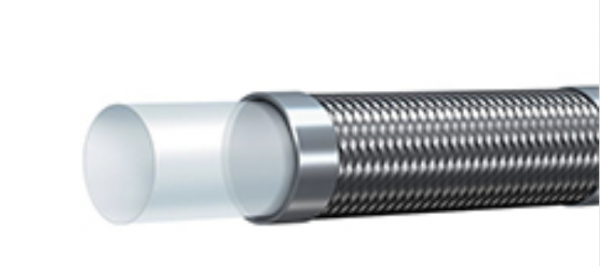

It consists of two layers: a convoluted or smooth PTFE inner tube and a stainless steel braided cover. A smooth PTFE inner tube is ideal for high and low temperature applications, it is also anti-corrosive and non-stick. The braided stainless steel cover is made from SUS304 or SUS316, so it has higher pressure resistance and withstands extreme temperatures. The maximum working pressure can vary depending on the size and construction of the r14 hose, but it is commonly available with pressure ratings up to 3,000 psi.

Sizes: 1/4'' - 1''
